942076015 - 28-port Modular Full Gigabit Ethernet Switch
Std Part No: MSP40-00280SCY9MRHHE3AXX.X

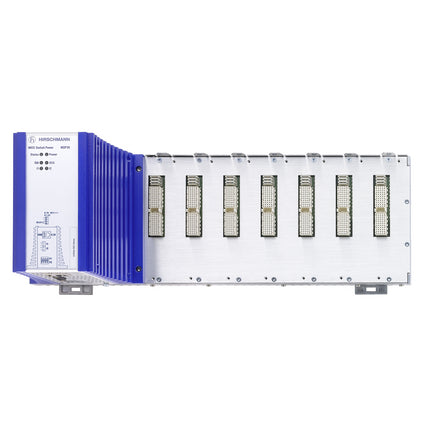

Hirschmann MSP40-28-3A is a Modular Full Gigabit DIN Rail Managed I.E Switch with up to 24 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9:CE/EN/UL60950 Approvals
PRODUCT FEATURES
• Increase bandwidth with 28 Gigabit Ethernet ports
– Reusable modules that can be used on any slot (first slot is reserved for a newly designed and unique 2.5 GE module)
– Up to four 2.5 GE ports for high availability with media redundancy protocol (MRP) and link aggregation
– 10 Gigabit-ready (future module upgrade)
• Modular setup with hot swappable module slots and Layer 2/Layer 3 capabilities
• High-grade metal/aluminium housing for mounting on a DIN rail
• Optionally extended temperature range from -40°C to +70°C (standard is from 0°C to +60°C)
• Cost-effective powering of terminal equipment via PoE+ function. The backplane of the switch supports up to 120 watts and additional media modules with external power supply can even increase the total amount of available PoE power
• Simple configuration and diagnosis using HiDiscovery, HiView, Industrial HiVision or web interface
• Diversity of standards and approvals
• 5-year warranty
ORDERING INFORMATION
| Essential Part Number |
Part Number |
Article Number |
Description |
| MSP40-28-3A |
MSP40-00280SCY9MRHHE3AXX.X |
942 076-015 |
Modular Full Gigabit DIN Rail Managed I.E Switch with up to 24 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9:CE/EN/UL60950 Approvals |
DOCUMENTS
MSP40-28-3A DATASHEET
