This product is obsolete and is replaced by a new SPIDER III Series product, please contact us for details
942141030 - Unmanaged 9-port Switch
Std Part No: SPIDER-PL-20-07T1M2M299TY9HHHH

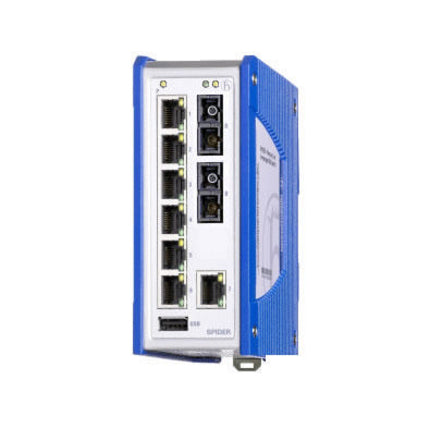

Hirschmann SPL20-7TX/2FX-EEC is a 9-port Unmanaged FE switch with 7 x 10/100BASE-TX RJ45 and 2 x 100BASE-FX Multi-mode fiber SC ports with Extended Operating Temperature.
The SPIDER PL switches feature configurable switch functionality typically only found in managed switches. The switches are easily configured using the SPIDER’s USB port and free stand-alone software tool.
PRODUCT FEATURES
- Advanced Unmanaged Switch features – Port Security, VLAN, QOS, Port Control
- Configuration via USB Interface
- With 7 x 10/100BASE-TX RJ45 and 2 x 100BASE-FX Multi-mode fiber SC ports
- Metal IP40 housings
- Extended Operating Temperature range -40 °C to +70 °C
- Extensive Industrial Certifications - Y9 variants have CE, FCC, EN 61131, EN 60950, cUL61010 approvals
ORDERIING INFORMATION
| Essential Part Number |
Part Number |
Article Number |
Description |
| SPL20-7TX/2FX-EEC |
SPIDER-PL-20-07T1M2M299TY9HHHH |
942 141-030 |
Advanced 9 port Unmanaged switch with 7 x 10/100BASE-TX RJ45 and 2 x 100BASE-FX Multi-mode fiber SC ports, Extended Temp |
DOCUMENTS
SPL20-7TX/2FX-EEC DATASHEET
