RS-232 to RS-485 Interface Converter

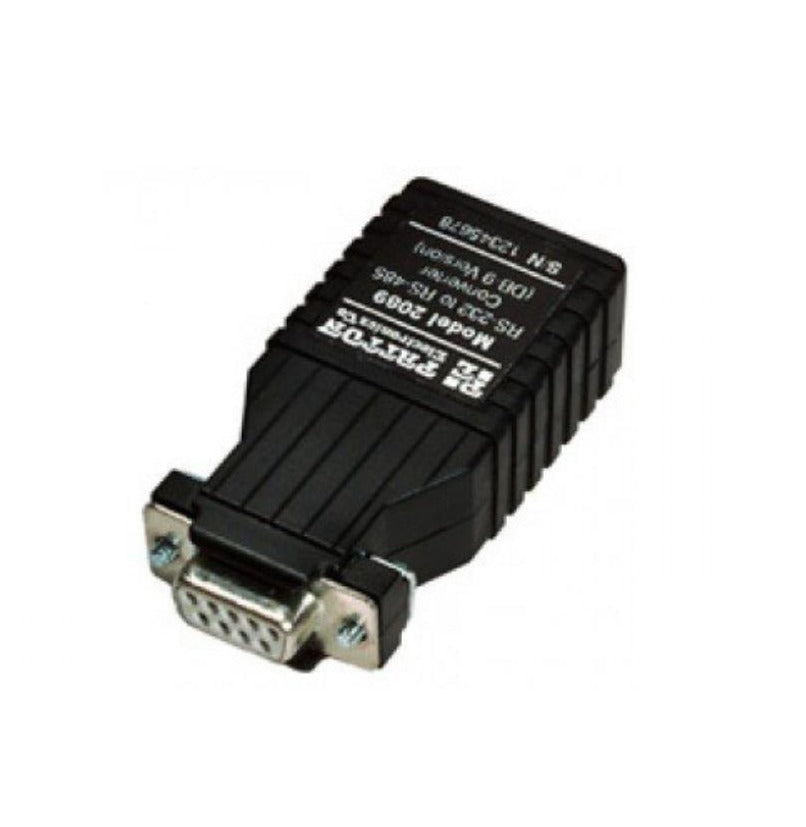

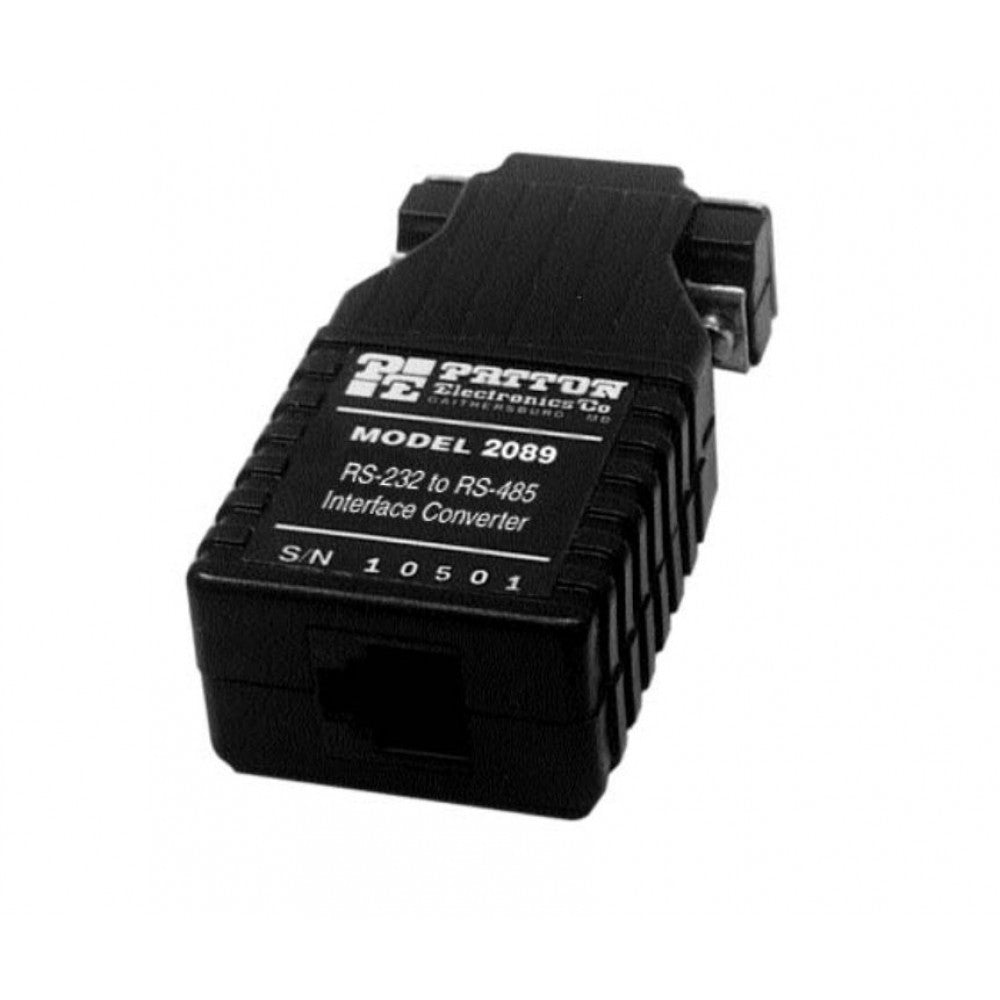

Patton 2089 Series is a RS-232 to RS-485 Interface Converter with Data Rates to 115,200 bps

FEATURES

  • Fully Conforms to the EIA RS-485 Standard
  • Data Rates to 115,200 bps
  • Range Up to 9 Miles (14.5 Km)
  • No AC Power or Batteries Required
  • Up to 50 Terminal Drops in a Multipoint Polling Environment
  • 600 Watts of Silicon Avalanche Diode Surge Protection - Standard

ORDERING INFORMATION

Part Number Description
2089F RS232/RS485 CONVERTER, DB9F
2089F RJ11 RS232/RS485 CONVERTER,DB9F/RJ11
2089F RJ45 RS232/RS485 CONVERTER,DB9F/RJ45
2089M RS232/RS485 CONVERTER, DB9M
2089M RJ11 RS232/485 CONVERTER,DB9M/RJ11
2089M RJ45 RS232/RS485 CONVERTER,DB9M/RJ45



DOCUMENTS

2089 MANUAL
