302210204 - Unmanaged 5-port FE Switch with 5 TX ports

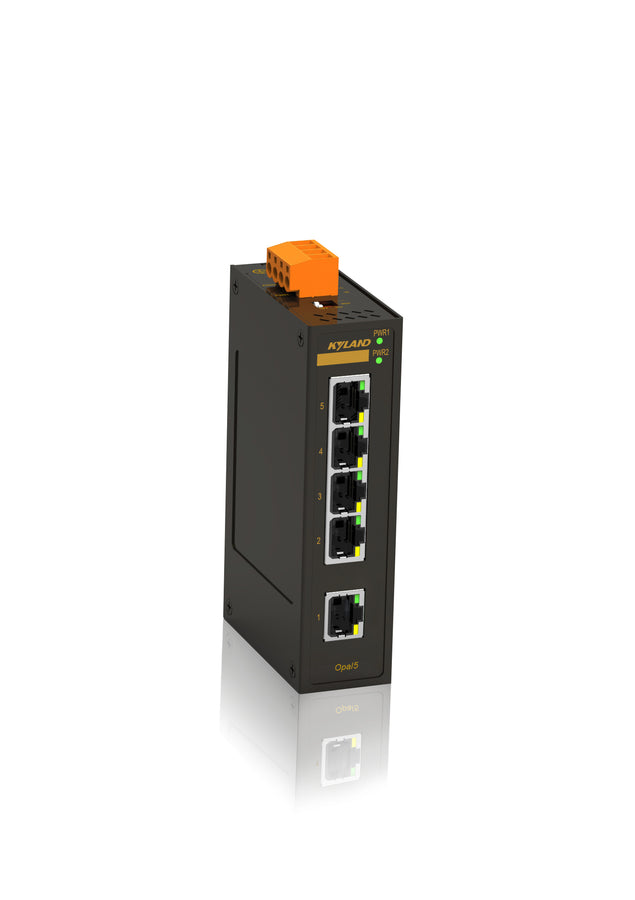

Kyland Opal5L-E-5T-LV-LV is a 5-port Unmanaged switch with 5 x 10/100Base-TX ports.
PRODUCT FEATURES
• Simple plug and play devices
• Compact DIN-Rail Metal housing
• Standard operating temperature range -10 ºC to +60 ºC (- E variants)
• Available with Multi-mode (M) or Single-mode (S) fiber port. Multi-mode up to 5km and Single-mode up to 80km
• Available with open SFP port slot. (SFPs to be ordered separately)
• Available with extended operating temperature range -40 ºC to +70 ºC (non E variants)
• Dual redundant power inputs: 12-48VDC/18-30VAC
• Ideal for use with 24VAC BMS systems
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| Opal5L-E-5T-LV-LV |
302210204 |
5 x 10/100Base TX RJ45 ports 24VAC/DC |
DOCUMENTS
Opal5L-E-5T-LV-LV DATASHEET
