RUGGEDCOM

RSG2300P Series

6GK6023 Industrially hardened, fully managed, modular Ethernet switch

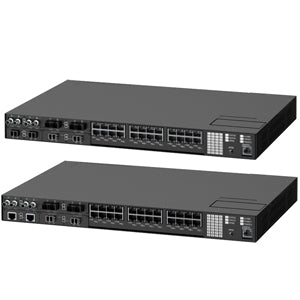

The RUGGEDCOM RSG2300P Series is an industrially hardened, fully managed, modular Ethernet switch with 2x 10/100BaseTX 802.3af (PoE) compliant Ethernet ports, with the option to add an additional 2 PoE ports, up to 6 additional Ethernet port

FEATURES

24 10/100TX copper ports
Optional: up to 4 1000LX Gigabit Ethernet ports (copper and/ or fiber) and up to 8 100FX Fiber Fast Ethernet ports
2 port modules for tremendous flexibility
Non-blocking, store and forward switching
Supports many types of fiber (Multimode, singlemode, bi-directional single strand)
Long haul optics allow distances up to 90km
Multiple connector types (ST, MTRJ, LC, SC)

RSG2300 CONFIGURATOR

Model
6GK6023-0AS2 - Main - Mount - PS1 - PS2 - S1 - S2 - S3 - S4 - MOD	Industrially hardened, fully managed, modular Ethernet switch, 4 10/100TX copper ports Optional: up to 4 1000LX Gigabit Ethernet ports (copper and/or fiber) and up to 8 100FX Fiber Fast Ethernet ports; 2 port modules

Main: Ethernet and Power Connectors
B	Ethernet on rear; LED panel on front; power connector on rear
C	Ethernet on front; LED panel on front; power connector on rear
D	Ethernet on rear; LED panel on top; power connector on rear
E	Ethernet on front; LED panel on top; power connector on rear

Mount: Mounting Options
A	19” Rack Mount Kit
D	DIN and Panel Mount Kit
E	19” Rack, DIN, and Panel Mount Kit
F	No Mounting Option

PS1: Power Supply 1
1	24 VDC (10 – 36 VDC) with screw terminal block
2	48 VDC (36 – 72 VDC) with screw terminal block
3	88 – 300 VDC / 85 – 264 VAC with screw terminal block
4	24 VDC (10 – 36 VDC) with pluggable terminal block
5	48 VDC (36 – 72 VDC) with pluggable terminal block
6	88 – 300 VDC / 85 – 264 VAC with pluggable terminal block 6

PS2: Power Supply 2 (terminal block must be equal to power supply 1)
0	No power supply 2
1	24 VDC (10 – 36 VDC) with screw terminal block
2	48 VDC (36 – 72 VDC) with screw terminal block
3	88 – 300 VDC / 85 – 264 VAC with screw terminal block
4	24 VDC (10 – 36 VDC) with pluggable terminal block
5	48 VDC (36 – 72 VDC) with pluggable terminal block
6	88 – 300 VDC / 85 – 264 VAC with pluggable terminal block

Z Options	S1	S2
No module	A00	B00
2 x 10/100BASE-TX RJ45	A01	B01
2 x 10BASE-FL, multi-mode, 850 nm, ST	A02	B02
2 x 100BASE-FX, multi-mode, 1300 nm, ST	A03	B03
2 x 100BASE-FX, multi-mode, 1300 nm, SC	A04	B04
2 x 100BASE-FX, multi-mode, 1300 nm, LC	A05	B05
2 x 100BASE-FX, multi-mode, 1300 nm, MTRJ	A06	B06
2 x 100BASE-FX, single-mode, 1310 nm, ST, 20 km	A07	B07
2 x 100BASE-FX, single-mode, 1310 nm, SC, 20 km	A08	B08
2 x 100BASE-FX, single-mode, 1310 nm, LC, 20 km	A09	B09
2 x 100BASE-FX, single-mode, 1310 nm, SC, 50 km	A10	B10
2 x 100BASE-FX, single-mode, 1310 nm, LC, 50 km	A11	B11
2 x 100BASE-FX, single-mode, 1310 nm, SC, 90 km	A12	B12
2 x 100BASE-FX, single-mode, 1310 nm, LC, 90 km	A13	B13

Z Options	S3	S4
No module	C00	D00
2 x 10/100/1000BASE-TX RJ45	C01	D02
2 x 1000BASE-SX, multi-mode, 850 nm, LC, 500 m	C02	D02
2 x 1000BASE-LX, single-mode, 1310 nm, SC, 10 km	C03	D03
2 x 1000BASE-LX, single-mode, 1310 nm, LC, 10 km	C04	D04
2 x 1000BASE-LX, single-mode, 1310 nm, SC, 25 km	C05	D05
2 x 1000BASE-LX, single-mode, 1310 nm, LC, 25 km	C06	D06
2 x 1000BASE-LX SFP, blank (no optical transceiver)	C07	D07
2 x 1000BASE-SX SFP, multi-mode, 850 nm, LC, 500 m (Incl. 2 x SFP1122-1SX)	C08	D08
2 x 1000BASE-LX SFP, single-mode, 1310 nm, LC, 10 km (Incl. 2 x SFP1132-1LX10)	C09	D09
2 x 1000BASE-LX SFP, single-mode, 1310 nm, LC, 25 km (Incl. 2 x SFP1132-1LX25)	C10	D10
2 x 1000BASE-LX SFP, single-mode, 1550 nm, LC, 70 km (Incl. 2 x SFP1132-1LX70)	C11	D11
2 x 1000BASE-LX GBIC, blank (no optical transceiver)	C12	D12
2 x 1000BASE-LX GBIC, single-mode, 1310 nm, SC, 10 km	C13	D13
2 x 1000BASE-LX GBIC, single-mode, 1310 nm, SC, 25 km	C14	D14
2 x 1000BASE-LX GBIC, single-mode, 1550 nm, SC, 70 km	C15	D15
2 x 100BASE-FX, multi-mode, 1300 nm, ST	C16	D16
2 x 100BASE-FX, multi-mode, 1300 nm, SC	C17	D17
2 x 100BASE-FX, multi-mode 1300 nm, LC	C18	D18
2 x 100BASE-FX, multi-mode 1300 nm, MTRJ	C19	D19
2 x 100BASE-FX, single-mode 1310 nm, ST, 20 km	C20	D20
2 x 100BASE-FX, single-mode 1310 nm, SC, 20 km	C21	D21
2 x 100BASE-FX, single-mode 1310 nm, LC, 20 km	C22	D22
2 x 100BASE-FX, single-mode 1310 nm, SC, 50 km	C23	D23
2 x 100BASE-FX, single-mode 1310 nm, LC, 50 km	C24	D24
2 x 100BASE-FX, single-mode, 1310 nm, SC, 90 km	C25	D25
2 x 100BASE-FX, single-mode 1310 nm, LC, 90 km	C26	D26
2 x 1000BASE-TX, SFP, RJ45 (Incl. 2 x SFP1112-1)	C27	D27

MOD: Manufacturing Modifications
XX	None
C01	Conformal Coating

Notes:
1. Distance ratings are typical but will depend on type of cabling, number of connectors and splices.
2. These transceivers have an operating temperature range of -20 °C to +85°C.
All other transceivers have an operating temperature range of -40°C to +85°C
3. Base unit comes standard with 24 10/100TX RJ45 ports
4. SFP plugable optics that consist of a blank cage (FG50 for dual, 1FG50 for single) plus specified fiber optic
interface(s) installed
5. GBIC plugable optics that consist of a blank cage (FG70 for dual, 1FG70 for single) plus specified fiber optic
interface(s) installed
6. Power Supply 1 and 2 must be either both screw terminal block or both pluggable terminal block
7. Switch must be ordered with at least one module installed

RSG2300P CONFIGURATOR

Model
6GK6023-0PS2 - Main - Mount - PS1 - S1 - S2 - S3 - S4 - MOD	Industrially hardened, fully managed, modular Ethernet switch, 2x 10/100BaseTX 802.3af (PoE) compliant Ethernet ports, with the option to add an additional 2 PoE ports, up to 6 additional Ethernet ports

Main: Connections
B	Ethernet interfaces on rear; LED panel on front; power connector on rear
C	Ethernet interfaces on front; LED panel on front; power connector on rear
D	Ethernet interfaces on rear; LED panel on top; power connector on rear
E	Ethernet interfaces on front; LED panel on top; power connector on rear

Mount: Mounting Options
A	No mounting option
D	19” rack mounting kit
E	DIN/rail and panel mounting kit
F	19” rack, DIN/rail and panel mounting kit

PS1: Power Supply 1
1	24 VDC (10 – 36 VDC) with screw terminal block
2	48 VDC (36 – 72 VDC) with screw terminal block
3	88 – 300 VDC / 85 – 264 VAC with screw terminal block
4	24 VDC (10 – 36 VDC) with pluggable terminal block
5	48 VDC (36 – 72 VDC) with pluggable terminal block
6	88 – 300 VDC / 85 – 264 VAC with pluggable terminal block

Z Options	S1
No module	A00
2 x 10/100BASE-TX PoE ports	A01
2 x 10BASE-FL, multi-mode, 850 nm, ST	A02
2 x 100BASE-FX, multi-mode, 1300 nm, ST	A03
2 x 100BASE-FX, multi-mode, 1300 nm, SC	A04
2 x 100BASE-FX, multi-mode, 1300 nm, LC	A05
2 x 100BASE-FX, multi-mode, 1300 nm, MTRJ	A06
2 x 100BASE-FX, single-mode, 1310 nm, ST, 20 km	A07
2 x 100BASE-FX, single-mode, 1310 nm, SC, 20 km	A08
2 x 100BASE-FX, single-mode, 1310 nm, LC, 20 km	A09
2 x 100BASE-FX, single-mode, 1310 nm, SC, 50 km	A10
2 x 100BASE-FX, single-mode, 1310 nm, LC, 50 km	A11
2 x 100BASE-FX, single-mode, 1310 nm, SC, 90 km	A12
2 x 100BASE-FX, single-mode, 1310 nm, LC, 90 km	A13

Z Options	S2
2 x 10/100BASE-TX RJ45 (PoE ports)	B01

Z Options	S3	S4
No module	C00	D00
2 x 10/100/1000BASE-TX RJ45	C01	D01
2 x 1000BASE-SX, multi-mode, 850 nm, LC, 500 m	C02	D02
2 x 1000BASE-LX, single-mode, 1310 nm, SC, 10 km	C03	D03
2 x 1000BASE-LX, single-mode, 1310 nm, LC, 10 km	C04	D04
2 x 1000BASE-LX, single-mode, 1310 nm, SC, 25 km	C05	D05
2 x 1000BASE-LX, single-mode, 1310 nm, LC, 25 km	C06	D06
2 x 1000BASE-LX SFP, blank (no optical transceiver)	C07	D07
2 x 1000BASE-SX SFP, multi-mode, 850 nm, LC, 500 m (Incl. 2 x SFP1122-1SX)	C08	D08
2 x 1000BASE-LX SFP, single-mode, 1310 nm, LC, 10 km (Incl. 2 x SFP1132-1LX10)	C09	D09
2 x 1000BASE-LX SFP, single-mode, 1310 nm, LC, 25 km (Incl. 2 x SFP1132-1LX25)	C10	D10
2 x 1000BASE-LX SFP, single-mode, 1550 nm, LC, 70 km (Incl. 2 x SFP1132-1LX70)	C11	D11
2 x 1000BASE-LX GBIC, blank (no optical transceiver)	C12	D12
2 x 1000BASE-LX GBIC, single-mode, 1310 nm, SC, 10 km	C13	D13
2 x 1000BASE-LX GBIC, single-mode, 1310 nm, SC, 25 km	C14	D14
2 x 1000BASE-LX GBIC, single-mode, 1550 nm, SC, 70 km	C15	D15
2 x 100BASE-FX, multi-mode, 1300 nm, ST	C16	D16
2 x 100BASE-FX, multi-mode, 1300 nm, SC	C17	D17
2 x 100BASE-FX, multi-mode 1300 nm, LC	C18	D18
2 x 100BASE-FX, multi-mode 1300 nm, MTRJ	C19	D19
2 x 100BASE-FX, single-mode 1310 nm, ST, 20 km	C20	D20
2 x 100BASE-FX, single-mode 1310 nm, SC, 20 km	C21	D21
2 x 100BASE-FX, single-mode 1310 nm, LC, 20 km	C22	D22
2 x 100BASE-FX, single-mode 1310 nm, SC, 50 km	C23	D23
2 x 100BASE-FX, single-mode 1310 nm, LC, 50 km	C24	D24
2 x 100BASE-FX, single-mode, 1310 nm, SC, 90 km	C25	D25
2 x 100BASE-FX, single-mode 1310 nm, LC, 90 km	C26	D26
2 x 1000BASE-TX, SFP, RJ45 (Incl. 2 x SFP1112-1)	C27	D27

MOD: Manufacturing modification
0	Standard
1	Conformal coating
