DRAGON PTN Series
DRAGON PTN Series

Hirschmann

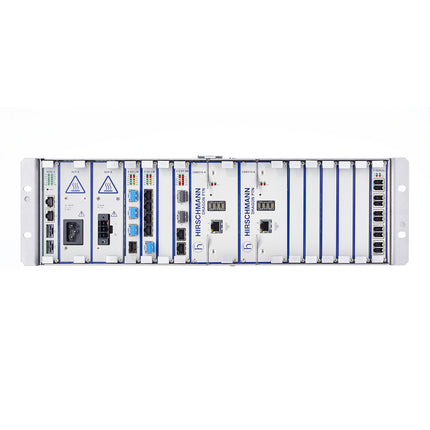

DRAGON PTN Series

Request a quote

Switch Chassis with HiVision

Hirschmann DRAGON PTN Series is a backbone device configured using HiProvision provisioning software, offers a reliable, packet-based MPLS-TP technology to transport mission-critical data through large networks

FEATURES

  • MPLS-TP technology delivers dedicated bandwidth for different services and 50ms protection switching
  • HiProvision software for easy configuration and management of large transmission networks
  • Industrial HiVision integration for backbone and access network
  • Variety of interface modules and port types to ensure flexibility and seamless integration of legacy systems
  • Resilient against harsh conditions with operating temperatures varying from -30 °C to +65 °C
  • Redundant central switching modules and power supplies guarantee high network availability

ORDERING INFORMATION

Part Number Article Number Description
DRAGON PTN2210 942 228-004 Up to 4 x 10 Gigabit Ethernet and 23 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply, future proof 40 Gigabit Ethernet (available soon)
DRAGON PTN2209 942 228-003 Up to 4 x 10 Gigabit Ethernet and 27 x 1 Gigabit Ethernet L2/L3, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply, future proof 40 Gigabit Ethernet (available soon)
DRAGON PTN2206 942 228-002 Up to 2 x 10 Gigabit Ethernet and 16 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules and power supply
DRAGON PTN1104 942 228-001 Up to 16 x 1 Gigabit Ethernet, modular design with various module configurations (PTN-4-E1T1-L, PTN-7-SERIAL, PTN-2-OLS, etc.), hot pluggable modules



DOCUMENTS

DRAGON PTN BROCHURE
