6GK6092 - Compact High Density Gigabit Switch

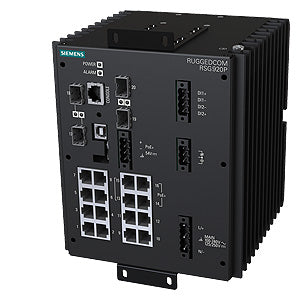

The RUGGEDCOM RSG920P is a rugged, high density, small form factor Layer 2 switch with Power-over-Ethernet (PoE) capability designed for space limited cabinets with high bandwidth requirements.

With 20 Gigabit Ethernet ports, the RUGGEDCOM RSG920P is suitable for applications that require high bandwidths and is ready to accommodate future network expansions.

4 SFP slots provide ultimate flexibility in uplink distances and bandwidth with support for Gigabit as well as Fast Ethernet fiber SFP. The small form factor of the RUGGEDCOM RSG920P allows deployment in space limited cabinets and on DIN rails.

FEATURES

  • 1 x USB console port
  • 1 x RJ45 console port
  • 4 x SFP ports Gigabit
  • 12 x 10/100/1000 TX
  • 4 x 10/100/1000 TX POE+



CONFIGURATOR

Model
6GK6092-0PS2 - MOUNT - PS1 - P17 - P18 - P19 - P20 - MOD Fully managed Ethernet switch, 20 non-blocking Gigabit Ethernet ports; support for 4 SFP modules and 4 PoE ports



Mount: Mounting Options
A No mounting kit
B Din rail mounting option*
C Panel mounting option*



PS1: Power Supply 1
1 LO (9 – 60 VDC)
3 HI (88 – 300 VDC / 85 – 264 VAC )



Z Options P17 P18 P19 P20
No SFP Transceiver A00 B00 C00 D00
SFP, 100BASE-FX, Multi-mode, LC, 1310 nm, 2 Km A01 B01 C01 D01
SFP, 100BASE-FX, Single-mode, LC, 1310 nm, 20Km A02 B02 C02 D02
SFP, 1000BASE-SX, Multi-mode, LC, 850 nm, 500 m A03 B03 C03 D03
SFP, 1000BASE-LX, Single-mode, LC, 1310 nm, 10 Km A04 B04 C04 D04
SFP, 1000BASE-LX, Single-mode, LC, 1310 nm, 25 Km A05 B05 C05 D05
SFP, 1000BASE-LX, Single-mode, LC, 1550 nm, 70 Km A06 B06 C06 D06



MOD: Manufacturing modification
0 None
1 Conformal coating
2 Explosive atmosphere modification
