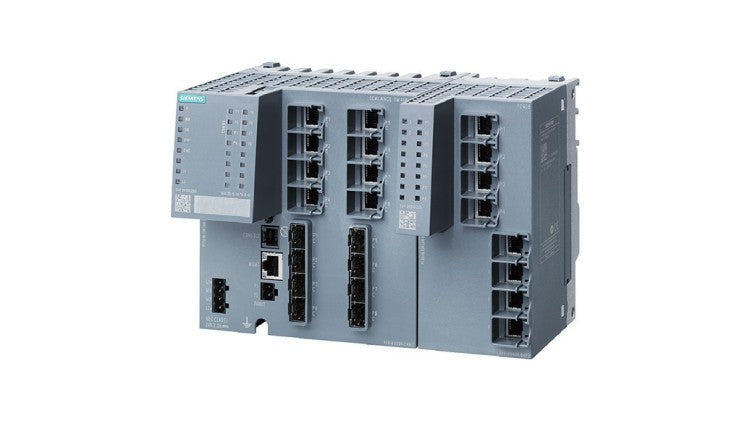

SCALANCE X-400 Series

Request a quote

Layer 2/3 Managed Ethernet Switch

Siemens SCALANCE X-400 Series is a expandable to 24-port Managed Layer 2/3 Ethernet switch with 24x RJ45 / 24x SFPs

FEATURES

  • Compact design
  • Retaining collar
  • Can be extended with modules
  • Optical connection of layer 3 functionality
  • Installation in control cabinet, on standard mounting rail, on SIMATIC mounting rail
  • Support of virtual networks (VLAN)
  • Console port
  • Redundant power supply

ORDERING INFORMATION

SCALANCE XM-400
Article Number Description
6GK5408-4GP00-2AM2 SCALANCE XM408-4C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbit/s ST-/SC- Pluggable as combo ports; in total 8 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 with key plug available
6GK5408-4GQ00-2AM2 SCALANCE XM408-4C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbit/s ST-/SC- Pluggable as combo ports; in total 8 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 integrated
6GK5408-8GR00-2AM2 SCALANCE XM408-8C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 8 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 integrated
6GK5408-8GS00-2AM2 SCALANCE XM408-8C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 8 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 with key plug available
6GK5416-4GR00-2AM2 SCALANCE XM416-4C; managed modular IE switch; 16x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbit/s SFP; contains 4 combo ports; in total 16 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 integrated;
6GK5416-4GS00-2AM2 SCALANCE XM416-4C; managed modular IE switch; 16x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbit/s SFP; contains 4 combo ports; in total 16 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery; Layer 3 with key plug available



SCALANCE X-400 Port Extender
Article Number Description
6GK5400-8AS00-8AP2 PE400-8SFP Port Extender for SCALANCE XM-400 managed modular IE switch; extension by 8x 100/1000 Mbit/s SFP
6GK5408-0GA00-8AP2 PE408 Port Extender for SCALANCE XM-400 managed modular IE switch; extension by 8x 10/100/1000 Mbit/s RJ45
6GK5408-0PA00-8AP2 PE408PoE Port Extender for SCALANCE XM-400 managed modular IE switch; extension by 8x 10/100/1000 Mbit/s RJ45 with up to 8 ports PoE according to IEEE802.3AT; for PoE separate power supply required



DOCUMENTS

SCALANCE X-400 BROCHURE
