4-Port Industrial Layer-3 Managed Gigabit PoE Switch, Profinet certified

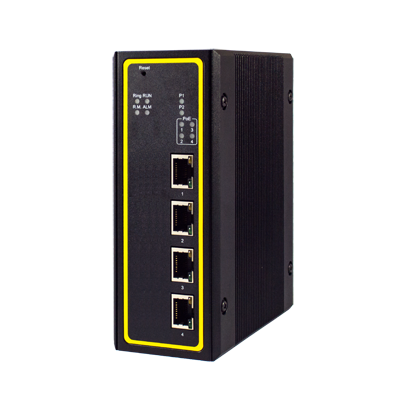

ATOP EHG7604 Series is a EHG7604 Series - 4-Port Industrial Layer-3 Managed Gigabit PoE Switch with up to 4 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots

FEATURES

  • Up to 4 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots.
  • Up to 4 x 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 120 W device power budget.
  • Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2
  • Layer-2 Redundancy, with ERPS, RSTP, STP, MRP (Client) and more.
  • Profinet CC-B conformance
  • IEEE 1588v2 Precision Time Protocol HW-based End-to-End Transparent clock
  • EN50155 / EN50121-4 certified for Railway applications
  • CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications
  • Works from -20°C~70°C, in 4000m elevation

ORDERING INFORMATION

Part Number Article Number Description
EHG7604 1P1EHG76040001G 4-port Managed switch with 4 x RJ45
EHG7604-4PoE 1P1EHG76040002G 4-port Managed PoE switch with 4 x RJ45 PoE
EHG7604-2SFP 1P1EHG76040003G 4-port Managed switch with 2 x RJ45, 2 x SFP
EHG7604-4SFP 1P1EHG76040004G 4-port Managed switch with 4 x SFP
EHG7604-2PoE-2SFP 1P1EHG76040005G 4-port Managed PoE switch with 2 x RJ45 PoE, 2 x SFP



DOCUMENTS

EHG7604 BROCHURE
