942076007 - 20-port Modular Gigabit Ethernet Switch
Std Part No: MSP30-24040SCY999HHE2AXX.X

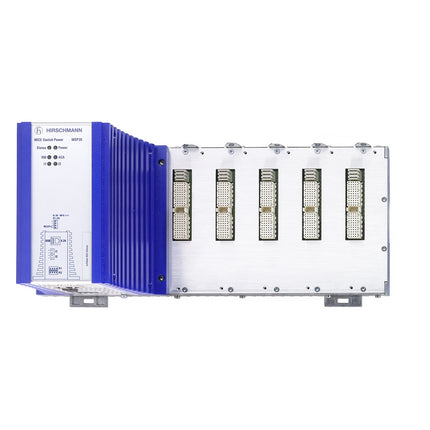

Hirschmann MSP30-28-2A is a Modular Gigabit DIN Rail Managed I.E Switch with up to 16 x FE TX/FX/SFP, 4 x GE TX/FX/SFP, 18-60 V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9: CE/EN/UL60950 Approvals
PRODUCT FEATURES
• Increase bandwidth with 28 Gigabit Ethernet ports
– Reusable modules that can be used on any slot (first slot is reserved for a newly designed and unique 2.5 GE module)
– Up to four 2.5 GE ports for high availability with media redundancy protocol (MRP) and link aggregation
– 10 Gigabit-ready (future module upgrade)
• Modular setup with hot swappable module slots and Layer 2/Layer 3 capabilities
• High-grade metal/aluminium housing for mounting on a DIN rail
• Optionally extended temperature range from -40°C to +70°C (standard is from 0°C to +60°C)
• Cost-effective powering of terminal equipment via PoE+ function. The backplane of the switch supports up to 120 watts and additional media modules with external power supply can even increase the total amount of available PoE power
• Simple configuration and diagnosis using HiDiscovery, HiView, Industrial HiVision or web interface
• Diversity of standards and approvals
• 5-year warranty
ORDERING INFORMATION
| Essential Part Number |
Part Number |
Article Number |
Description |
| MSP30-28-2A |
MSP30-24040SCY999HHE2AXX.X |
942 076-007 |
Modular Gigabit DIN Rail Managed I.E Switch with up to 16 x FE TX/FX/SFP, 4 x GE TX/FX/SFP, 18-60 V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9: CE/EN/UL60950 Approvals |
DOCUMENTS
MSP30-28-2A DATASHEET
