Hirschmann Obsolete

SPIDER 4TX/1FX

943221001 - Unmanaged 5-port Switch

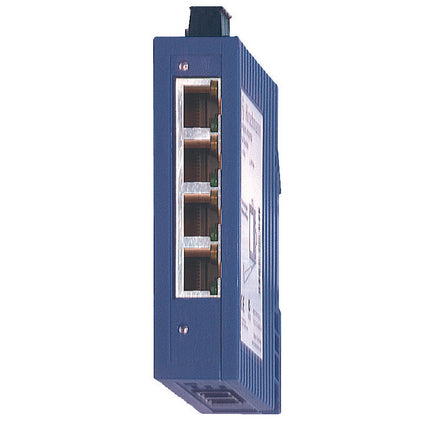

Hirschmann SPIDER 4TX/1FX is a 5-port entry level unmanaged switch with 4 x 10/100BASE-TX, TP Cable, RJ45 Ports, 1 x 100BASE-FX, Multi-mode cable with SC sockets

This part has gone End of Life on 30th November 2020*

*Replaced by Part Number SSL20-4TX/1FX*

PRODUCT FEATURES

• 5 port Entry Level Unmanaged Fast Ethernet Switch, for DIN rail mounting, store-and-forward-switching
• 4 x 10/100Base-TX RJ45 socket, TP cable, auto-crossing, auto-negotiation, auto-polarity
• 1 x 100Base-FX Multi Mode port with SC connector
• Multi Mode fiber (MM) 50/125 μm: 0-5000 m, 8 dB link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 800 MHz x km
• Multi Mode fiber (MM) 62.5/125 μm: 0-4000 m, 11 dB Link budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km
• Operating Temperature range: 0°C to +60°C
• Protection class: IP 30

ORDERING INFORMATION

Part Number	Article Number	Description
SPIDER 4TX/1FX(End of Life) Replaced by SSL20-4TX/1FX	943 221-001	4 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity 1 x 100BASE-FX, MM cable, SC sockets
