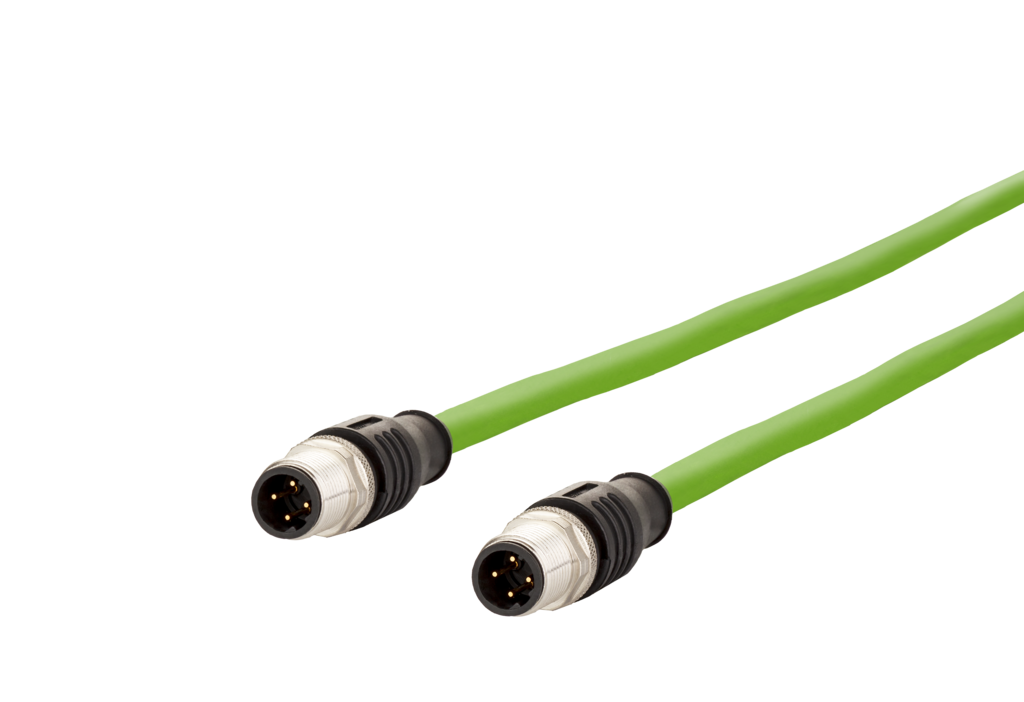

4250184139447 - Connection line M12 plug straight - M12 plug straight 4-pole, D-coded 1.0 m
Metz Connect 142M1D11010 is a connection line M12 plug straight with M12 plug straight 4-pole, D-coded 1.0 m
PRODUCT FEATURES
• shielded M12 Ethernet connection line
• drag chain suitable
• Cat.5e, 4-pole, D-coded to IEC 61076-2-101
• side 1: M12-plug, straight
• side 2: M12-plug, straight
• extrusion-coated cable on M12 connectors
• 2x2xAWG22/7, tinned with plastic foil
• inner sheath FRNC, aluminium-coated plastic foil
• overall shield: tinned copper braid, approx. 85% covered
• Profinet (WS-GE-BL-OR) wiring
• green cable, PUR
• standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m
• other cable lengths on request
ORDERING INFORMATION
| Part Number |
Article Number |
Description |
| 142M1D11010 |
4250184139447 |
Connection line M12 plug straight - M12 plug straight 4-pole, D-coded 1.0 m |
DOCUMENTS
142M1D11010 DATASHEET
