Hirschmann

MSP30/40 Series

Request a quote

20 to 28-port MSP Modular Switches

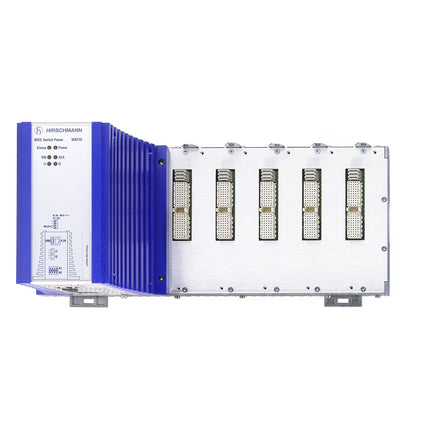

Hirschmann MSP30/40 Series is a Industrial DIN Rail Ethernet MPS Modular Switch with up to 28 Gigabit Ethernet ports

FEATURES

Increase bandwidth with 28 Gigabit Ethernet ports
- Reusable modules that can be used on any slot (first slot is reserved for a newly designed and unique 2.5 GE module)
- Up to four 2.5 GE ports for high availability with media redundancy protocol (MRP) and link aggregation
- 10 Gigabit module soon available
Modular setup with hot swappable module slots and Layer 2/Layer 3 capabilities
High-grade metal/aluminium housing for mounting on a DIN rail
Optionally extended temperature range from -40°C to +70°C (standard is from 0°C to +60°C)
Cost-effective powering of terminal equipment via PoE+ function. The backplane of the switch supports up to 120 watts and additional media modules with external power supply can even increase the total amount of available PoE power
Simple configuration and diagnosis using HiDiscovery, HiView, Industrial HiVision or web interface
Diversity of standards and approvals

ORDERING INFORMATION

Click the part number below for ordering information

MSP30

Part Number	Article Number	Description
MSP30-20-2A	942 076-005	Modular Gigabit DIN Rail Managed I.E Switch with up to 16 x FE TX/FX/SFP ports and 4 x GE TX/FX/SFP ports, 18-60 V DC, 0 °C to +60 °C, Software HiOS Layer 2 Advanced. Y9: CE/EN/UL60950 Approvals
MSP30-28-2A	942 076-007	Modular Gigabit DIN Rail Managed I.E Switch with up to 16 x FE TX/FX/SFP, 4 x GE TX/FX/SFP, 18-60 V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9: CE/EN/UL60950 Approvals
MSP30-28-2A	942 076-007	Modular Gigabit DIN Rail Managed I.E Switch with up to 16 x FE TX/FX/SFP, 4 x GE TX/FX/SFP, 18-60 V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9: CE/EN/UL60950 Approvals
MSP30-28-2A-CE	942 076-011	Modular Gigabit DIN Rail Managed I.E Switch with up to 24 x FE TX/FX/SFP ports and 4 x GE TX/FX/SFP ports, 18-60 V DC, 0 °C to +60 °C, Software HiOS Layer 2 Advanced. Z9: CE/EN European Approvals
MSP30-28-3A	942 076-008	Modular Gigabit DIN Rail Managed I.E Switch with up to 24 x FE TX/FX/SFP ports and 4 x GE TX/FX/SFP ports, 18-60 V DC, 0°C to + 60 °C, Software HiOS Layer 3 Advanced. Y9: CE/EN/UL60950 Approvals
MSP30-28-3A-CE	942 076-010	Modular Gigabit DIN Rail Managed I.E Switch with up to 24 x FE TX/FX/SFP ports and 4 x GE TX/FX/SFP ports, 18-60 V DC, 0 °C to +60 °C, Software HiOS Layer 3 Advanced. Z9: CE/EN European Approvals
MSP30-28-EEC-3A-CE	942 076-009	Modular Gigabit DIN Rail Managed I.E Switch with up to 24 x FE TX/FX/SFP ports and 4 x GE TX/FX/SFP ports, 18-60 V DC, EOT -40 °C to +70 °C, Software HiOS Layer 3 Advanced. Z9: CE/EN European Approvals

MSP40

Part Number	Article Number	Description
MSP40-20-2A	942 076-012	Modular Full Gigabit DIN Rail Managed I.E Switch with up to 16 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to +60°C, Software HiOS Layer 2 Advanced. Y9: CE/EN/UL60950 Approvals
MSP40-20-3A	942 076-013	Modular Full Gigabit DIN Rail Managed I.E Switch with up to 16 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 2 Advanced. Y9: CE/EN/UL60950 Approvals
MSP40-28-2A	942 076-014	Modular Full Gigabit DIN Rail Managed I.E Switch with up to 24 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9:CE/EN/UL60950 Approvals
MSP40-28-3A	942 076-015	Modular Full Gigabit DIN Rail Managed I.E Switch with up to 24 x GE TX/SFP ports with 4 x 2.5 GE or 2 x 10 GE SFP ports, 18-60V DC, 0°C to + 60°C, Software HiOS Layer 3 Advanced. Y9:CE/EN/UL60950 Approvals
