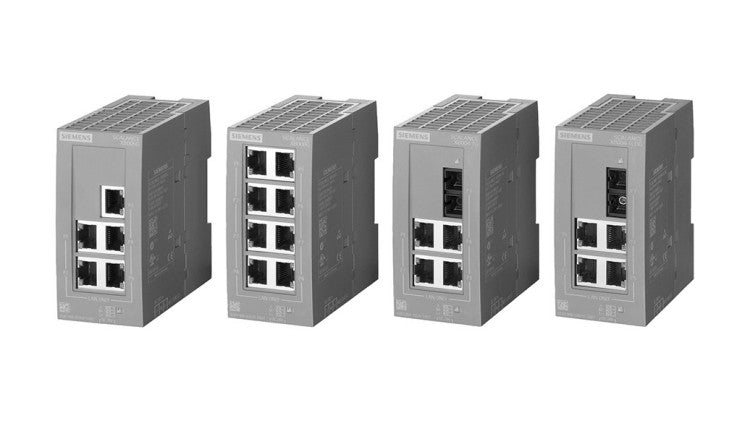

SCALANCE X-000 Series
SCALANCE X-000 Series

Siemens SCALANCE

SCALANCE X-000 Series

Request a quote

Unmanaged Industrial Ethernet Switches

Siemens SCALANCE X-000 is a series of unmanaged industrial ethernet switches with up to 8 x RJ45, 2 x SC

FEATURES

SCALANCE X005 / X005EEC

  • 5x RJ-45 ports
  • Metal housing
  • Transmission rate up to 100 Mbps
  • IP30 degree of protection
  • Installation in control cabinet, on standard mounting rail, on SIMATIC S7-300 mounting rail or for direct wall mounting
  • Retaining collar
  • Temperature range 0°C to +65°C
  • Temperature range -40 °C to +70 °C, EN 50155 and e1/E1 (for SCALANCE X005EEC)

SCALANCE XB-000

  • Up to 8x RJ45-Ports / 1x SC
  • Plastic housing
  • Transmission rate of up to 1 Gbps
  • IP20 degree of protection
  • Installation in control cabinet, control box
  • Temperature range -10 °C to +60 °C
  • Variants with AC 24 V (50/60 Hz) for use in building automation

ORDERING INFORMATION

SCALANCE X-000

Article Number Description
6EP1332-4BA00 SIMATIC PM 1507 24 V/3 A Stabilized power supply for SIMATIC S7-1500 input: 120/230 V AC, output: 24 V DC/3 A
6EP1333-4BA00 SIMATIC PM 1507 24 V/8 A Regulated power supply for SIMATIC S7-1500 input: 120/230 V AC, output: 24 V DC/8 A
6GK5005-0BA10-1AA3 SCALANCE X005, IE Entry Level Switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, Extended temperature range -40 °C...+75 °C, Manual available as a download
6GK5005-0BA10-1CA3 SCALANCE X005EEC, IE entry Level switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, Extended temperature range -40 °C...+75 °C, E1 approval Manual available as a download
6XV1840-2AH10 Industrial Ethernet FC TP Standard cable, GP 2x2 (PROFINET Type A), TP installation cable for connection to IE FC RJ45 2x2, for universal use, 4-core, shielded CAT 5E, sold by the meter, delivery length max. 4000 m minimum order 20 m


SCALANCE XB-000

Article Number Description
6GK5004-1BD00-1AB2 SCALANCE XB004-1 unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1 x 100 Mbit/s multimode glass FOC port with SC socket; Manual available as a download
6GK5004-1BF00-1AB2 SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1 x 100 Mbit/s single-mode glass FOC port with SC socket; Manual available as a download
6GK5004-1GL10-1AB2 SCALANCE XB004-1G unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 4x 10/100/1000 Mbit/s RJ45 ports electrical and 1 x 1000 Mbit/s SC port optical (multimode, glass), up to max. 750 m Manual available as a download
6GK5004-1GM10-1AB2 SCALANCE XB004-1LDG unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 4x 10/100/1000 Mbit/s RJ45 Ports electrical and 1 x 1000 Mbit/s SC port optical (single-mode, glass), up to max. 10 km Manual available as a download
6GK5004-2BD00-1AB2 SCALANCE XB004-2 unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24V DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 2x 100 Mbit/s multimode glass FOC port with SC socket; Manual available as a download
6GK5005-0BA00-1AB2 SCALANCE XB005 unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets; Manual available as a download
6GK5005-0GA10-1AB2 SCALANCE XB005G unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 5x 10/100/1000 Mbit/s RJ45 ports electrical; Manual available as a download
6GK5008-0BA10-1AB2 SCALANCE XB008 Unmanaged Industrial Ethernet Switch for 10/100 Mbit/s for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 8x 10/100 Mbit/s twisted pair ports with RJ45 sockets; Manual available as a download
6GK5008-0GA10-1AB2 SCALANCE XB008G unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 8x 10/100/1000 Mbit/s RJ45 ports electrical Manual available as a download



DOCUMENTS

SCALANCE X-000 BROCHURE
