EH7520 Series
EH7520 Series

ATOP

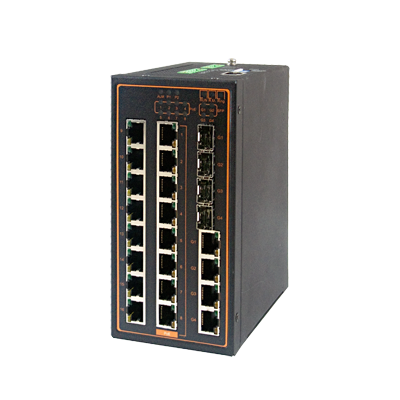

EH7520 Series

Request a quote

Industrial PoE Managed Switches

ATOP EH7520 Series is a Industrial Managed PoE switch with up to 16 x 10/100 BASE-T(X) ports and 4 x 10/100/1000 BASE-T(X) Combo ports

FEATURES

  • Up to 16 10/100 BASE-T(X) ports and 4 10/100/1000 BASE-T(X) Combo ports
  • Up to 8 802.3af or 802.3at complaint PoE ports
  • ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP/MSTP for
  • network redundancy
  • Remote management over Web browser, Telnet console, serial console, and
  • Windows Utility
  • Profinet CC-B v2.33 certified and GSDML file provided
  • Security features based on IEC62443-4-2

ORDERING INFORMATION

Part Number Article Number Description
EH7520-4G-4SFP 16-port Managed switch with 16 x 10/100 Base-T (X), 4 x 10/100/1000 Base-T (X), 4 x 10/100/1000 SFP
EH7520-4G-4PoE-4SF 16-port Managed PoE switch with 12 x 10/100 Base-T (X), 4 x 10/100 Base-T (X) PoE, 4 x 10/100/1000 Base-T (X), 4 x 10/100/1000 SFP
EH7520-4G-8PoE-4SFP 16-port Managed PoE switch with 8 x 10/100 Base-T (X), 8 x 10/100 Base-T (X) PoE, 4 x 10/100/1000 Base-T (X), 4 x 10/100/1000 SFP



DOCUMENTS

EH7520 BROCHURE
