EHG7516 Series

Request a quote

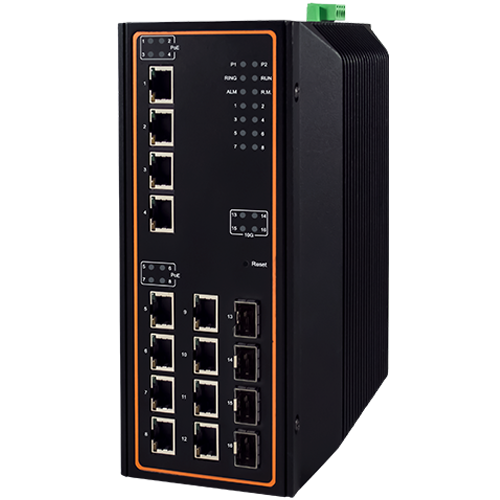

16-Port High-Bandwidth Industrial Managed Gigabit PoE Switch

ATOP EHG7516 Series is a 16-Port High-Bandwidth Industrial Managed Gigabit PoE Switch with up to 16 x 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots

FEATURES

  • Up to 16x 10/100/1000 RJ45 ports or 100/1000 BASE-X SFP slots. Plus 4 dedicated 1/10G Uplink SFP slots
  • Up to 8x 802.3af/ 802.3at PoE/PoE+ Power over Ethernet ports, with maximum 30W PoE power per port and up to 240W power budget
  • 128 Gbps High-Performance non-blocking Switching Fabric
  • Redundancy through ITU-T G.8032 ERPS Ring, RSTP, STP, MRP (Client)
  • IEEE 1588v2 Precision Time Protocol HW-Based E2E Transparent clock
  • Wide temperature operations, from -40°C to 70°C
  • UL 62368-1:2014, CE/FCC, NEMA TS-2 certified for traffic control applications
  • DNV-GL Marine Application
  • Security features based on IEC62443-4-2

ORDERING INFORMATION

Part Number Article Number Description
EHG7516-410GSFP 1P1EHG75160001G 16-port Managed switch with 12 x RJ45, 4 x 10G SFP slots
EHG7516-4SFP-410GSFP 1P1EHG75160004G 16-port Managed switch with 8 x RJ45, 4 x 100/1000 SFP slots, 4 x 10G SFP slots
EHG7516-8SFP-410GSFP 1P1EHG75160007G 16-port Managed switch with 4 x RJ45, 8 x 100/1000 SFP slots, 4 x 10G SFP slots
EHG7516-12SFP-410GSFP 1P1EHG75160009G 16-port Managed switch with 12 x 100/1000 SFP slots, 4 x 10G SFP slots
EHG7516-4PoE-410GSFP 1P1EHG75160002G 16-port Managed PoE switch with 8 x RJ45, 4 x RJ45 PoE, 4 x 10G SFP slots
EHG7516-4PoE-4SFP-410GSFP 1P1EHG75160005G 16-port Managed PoE switch with 4 x RJ45, 4 x RJ45 PoE, 4 x 100/1000 SFP slots, 4 x 10G SFP slots
EHG7516-4PoE-8SFP-410GSFP 1P1EHG75160008G 16-port Managed PoE switch with 4 x RJ45 PoE, 8 x 100/1000 SFP slots, 4 x 10G SFP slots
EHG7516-8PoE-410GSFP 1P1EHG75160003G 16-port Managed PoE switch with 4 x RJ45, 8 x RJ45 PoE, 4 x 10G SFP slots
EHG7516-8PoE-4SFP-410GSFP 1P1EHG75160006G 16-port Managed PoE switch with 8 x RJ45 PoE, 4 x 100/1000 SFP Slots, 4 x 10G SFP slots
EHG7516-8PoE-410GSFP 1P1EHG7516000AG 16-port Managed PoE switch with 4 x RJ45, 8 x RJ45 PoE, 4 x 10G SFP slots



DOCUMENTS

EHG7516 BROCHURE
