8 to 26 port MICE Modular Switches
Hirschmann MS20/30 Series is a 8 to 24-port MICE Modular switch series for up to 24 fast Ethernet and 2 Gigabit Ethernet ports, 24 PoE ports
FEATURES
- Up to 24 Fast Ethernet and 2 Gigabit Ethernet ports
- Up to 24 PoE ports (external power supply)
- Modular setup with hot swappable ports and Layer 2 capabilities
- High-grade metal/aluminium housing for mounting on a DIN rail
- Optionally extended temperature range from -40°C to +70°C (standard is from 0°C to +60°C)
- Click-in mechanism for tool-free module assembly
- Simple configuration and diagnosis using HiDiscovery, HiView, Industrial HiVision or web interface
- Diversity of standards and approvals
ORDERING INFORMATION
Click the part number below for ordering information
MS20
| Part Number |
Article Number |
Description |

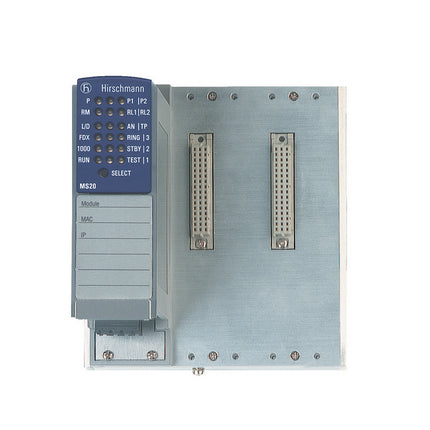

| MS20-0800SAAE |
943 435-001 |
MICE 2 slot backplane Managed FE switch. 8 ports max. Enhanced software |
| MS20-0800SAAP |
943 435-002 |
MICE 2 slot backplane Managed FE switch. 8 ports max. Professional software |
| MS20-1600SAAE |
943 435-003 |
MICE 4 slot backplane Managed FE switch. 16 ports max. Professional software |
MS30
| Part Number |
Article Number |
Description |

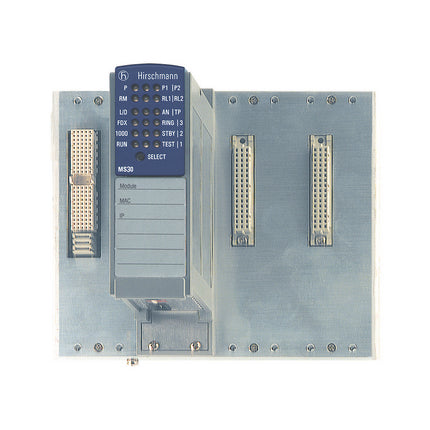

| M30-0802SAAE |
943 435-005 |
MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Enhanced software |
| MS30-0802SAAP |
943 435-006 |
MICE 3 slot backplane Managed GE/FE switch. 2 GE uplink ports and 8 FE ports max. Enhanced software |
| MS30-1602SAAE |
943 435-007 |
MICE 5 slot backplane Managed GE/FE switch. 2 GE uplink ports and 16 FE ports max. Enhanced software |
| MS30-1602SAAP |
943 435-009 |
MICE 5 slot backplane Managed GE/FE switch. 2 GE uplink ports and 16 FE ports max. Professional software |
DOCUMENTS
MS20/30 BROCHURE
