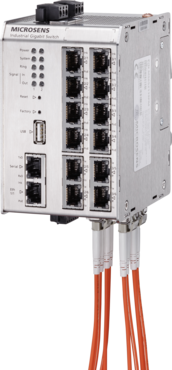

13-Port GBE Industrial Profi Line Modular Switch POE+

Microsens ProfiLine Modular Series is a 13-PORT GBE INDUSTRIAL PROFI LINE MODULAR SWITCH POE+ with expandable ports up to 25-ports with 16 PoE+ and 8 fiber optic combo ports

FEATURES

  • Highest Gigabit performance with smallest dimensions
  • Industrial design for maximum reliability in harsh environments

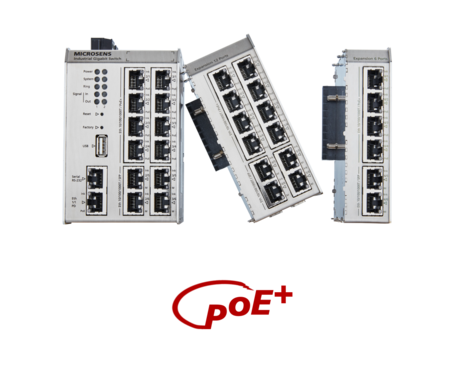

  • Modular expandable up to 25 ports (including 8 fiber ports)
  • Optimised architecture for increased performance with ring topology
  • PoE+ (max. 30W) integrated, (optional variant with max. 60W)
  • Range of ambient operation temperature from -40 up to +75 °C
  • Exchangeable SD-card for firmware and configuration included
  • Flexible firmware architecture for simple software upgrades
  • Redundant power inputs

ORDERING INFORMATION

Part Number Description
MS652119PM-V2 13-Port GbE Industrial PLM Switch PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)

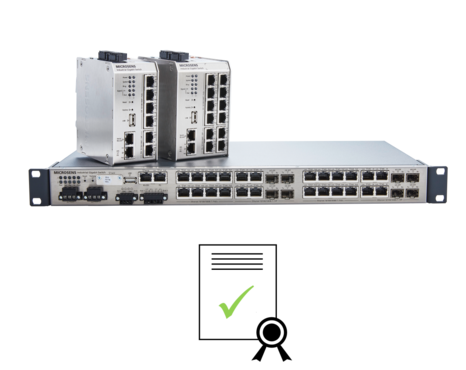

MS652119PM-B (Railway Certification) 13-Port GbE Industrial PLM Switch PoE+ ZERT 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45), IEC61850/EN50121-zert.
MS652119PM-BS (Railway Certification) 13-Port GbE Industrial PLM Switch PoE+ ZERT 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45), IEC61850/EN50121-zert.
MS652129PM 13-Port GbE Industrial PLM Switch HI-PoE 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 4x PoE 60W, 1x PD+, 2x 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45)
MS652159PM 13-Port GbE Industrial PLM Switch PoE+ 480W 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo), 9x 10/100/1000T, 8x PoE+, 1x PD+, 24..57VDC, DIN-Rail, managed, USB, SD-Karte inkl., 2x I/O, RS-232 Port (RJ-45), max. PSE-Budget 480W

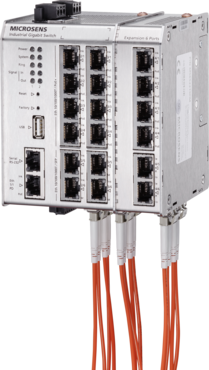

MS652219PM 6-Port GbE Erweiterungsmodul 4x 10/100/1000T PoE+ 2x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo) für MS652119PM-V2 (auf 19-Port)

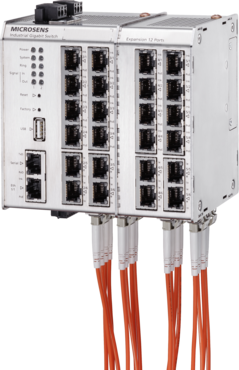

MS652419PM 12-Port GbE Erweiterungsmodul 8x 10/100/1000T PoE+ 4x 100/1000X SFP-Slots bzw. 10/100/1000T (Combo) für MS652119PM-V2 (auf 25-Port)



DOCUMENTS

MS6521x9 DATASHEET

MS650919PM-BS (Railway Certification) DATASHEET

MS652119PM-BS (Railway Certification) DATASHEET
